LED PCB assembly

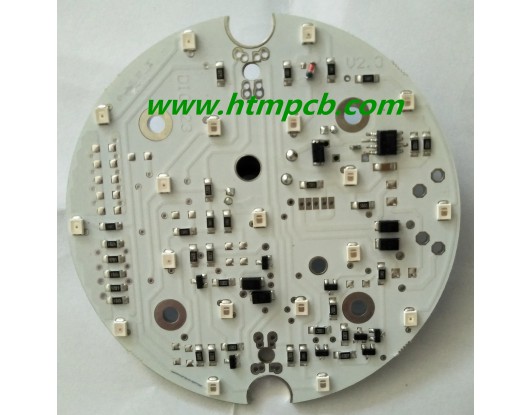

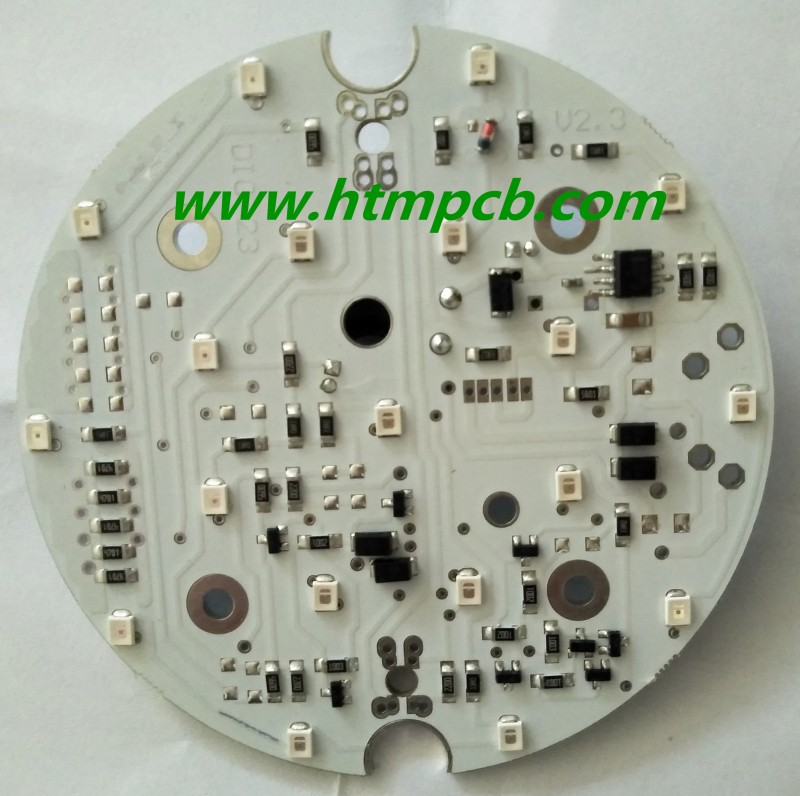

Metal backed PCB Assembly made in China
- Product Details
Layer NO# 1 or 2Layers
Unit Size: As gerber files
Panel Size: As gerber files
Units in Panel : 1
Material: Aluminum 1W/m.k
Finished Thickness: 1mm or 1.6mm
Outer Copper:/ 1 OZ or 2 OZ
Surface treatment: HASL LF
Min Line Width: ≥0.50mm
Min Line Space: ≥0.50mm
Min Hole: ≥2 mm
Solder Mask: White X 1 side
Silkscreen: Black X 1 side
Components: As bom list
Unit Size: As gerber files
Panel Size: As gerber files
Units in Panel : 1
Material: Aluminum 1W/m.k
Finished Thickness: 1mm or 1.6mm
Outer Copper:/ 1 OZ or 2 OZ
Surface treatment: HASL LF
Min Line Width: ≥0.50mm
Min Line Space: ≥0.50mm
Min Hole: ≥2 mm
Solder Mask: White X 1 side
Silkscreen: Black X 1 side
Components: As bom list
