LED PCB assembly

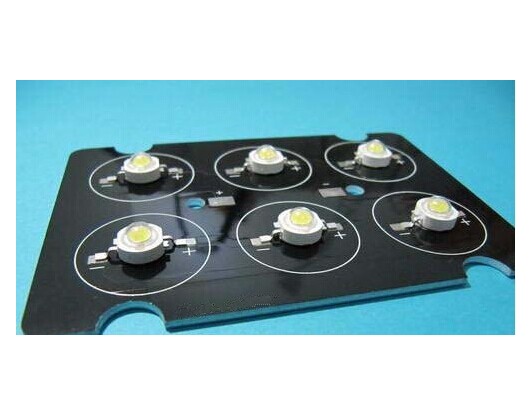

LED pcb assembly with bulb
- Product Details
Layer NO# 1 Layer
Unit Size: As gerber files
Panel Size: As gerber files
Units in Panel 1
Material: Aluminum 1.5W/m.k
Finished Thickness: 1mm
Outer Copper:/ 1 OZ
Surface treatment: HASL LF
Min Line Width: ≥0.70mm
Min Line Space: ≥0.70mm
Min Hole: ≥2 mm
Solder Mask: White X 1 side
Silkscreen: As request
BOM list as request.
Unit Size: As gerber files
Panel Size: As gerber files
Units in Panel 1
Material: Aluminum 1.5W/m.k
Finished Thickness: 1mm
Outer Copper:/ 1 OZ
Surface treatment: HASL LF
Min Line Width: ≥0.70mm
Min Line Space: ≥0.70mm
Min Hole: ≥2 mm
Solder Mask: White X 1 side
Silkscreen: As request
BOM list as request.
