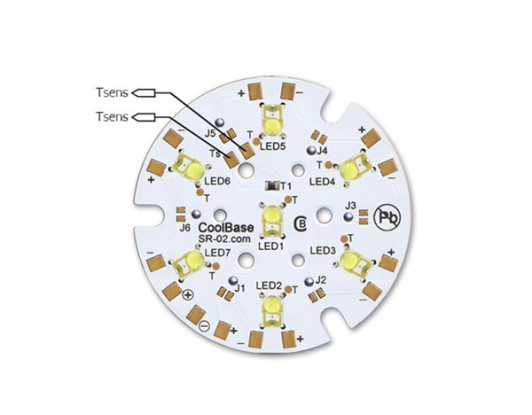

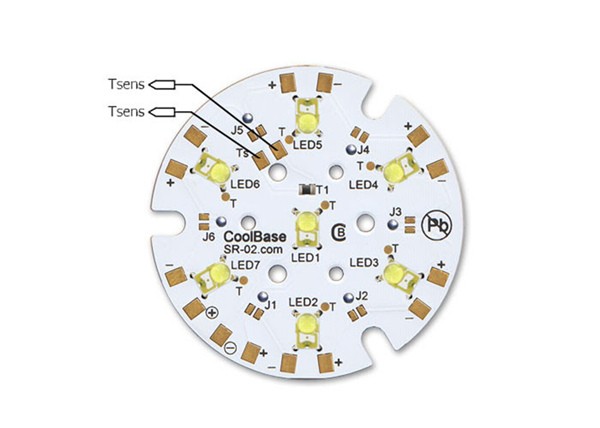

7 LED 40mm LED PCB Assembly Round LED Module Cool Base
- Product Details
LED Color: Cool White
Minium (1)Lumens @ 350mA: 700 lm
Typical (1)Lumens @ 700mA: 1260 lm
(2)Typical Wavelength: 6500K
(2)Wavelength Range: 4500K to 10000K
(2)Color Rendering Index: 70 CRI
(3)Beam Angle: 120°
(4)Recommended Operating Current: 700 mA
Maximum Rated Drive Current: 1000 mA
Typical Forward Voltage: 21 Vf
Maximum Forward Voltage: 27.93 Vf
Thermal Resistance: 10.7 C°/W
Max Recommended Junction Temp: 150 °C
Operating Temperature Range: -40 to 135 °C
Dimensions L x W x H: 40 x 40 x 3.7 mmRelated Products
-
