Aluminium PCB

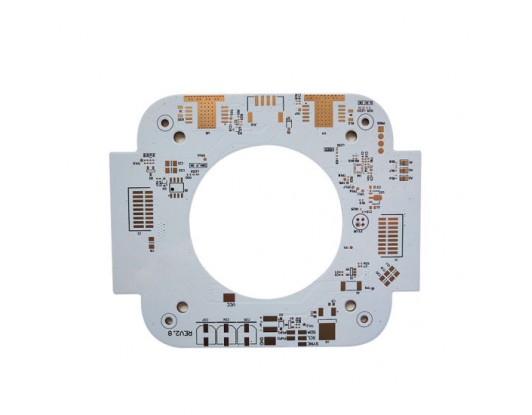

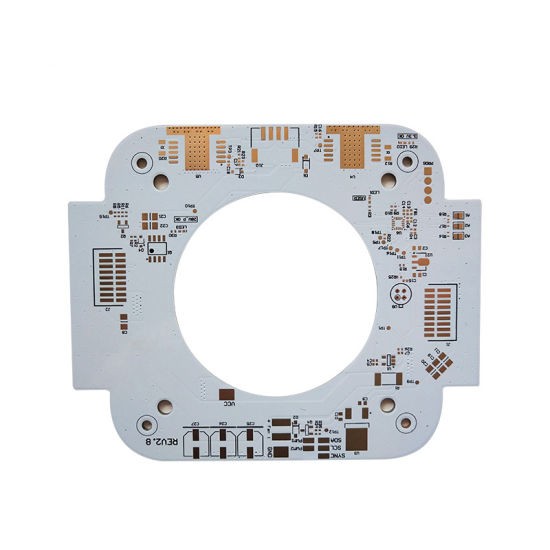

LED bulb MPCB
- Product Details
Product type: Aluminum Substrate
Material: Aluminum plate +high thermal insulation material
Layer/Thickness: 1L/1.6 mm
Outer Copper:/ 1 OZ
Surface treatment: HASL LF
Min Line Width: ≥ 0.5mm
Min Line Space: ≥0.3mm
Min Hole: ≥0.4 mm
Solder Mask: White X 1 side
Silkscreen: Black
Technical featuer: special materials
Application: Lamps and lanterns
Material: Aluminum plate +high thermal insulation material
Layer/Thickness: 1L/1.6 mm
Outer Copper:/ 1 OZ
Surface treatment: HASL LF
Min Line Width: ≥ 0.5mm
Min Line Space: ≥0.3mm
Min Hole: ≥0.4 mm
Solder Mask: White X 1 side
Silkscreen: Black
Technical featuer: special materials
Application: Lamps and lanterns
